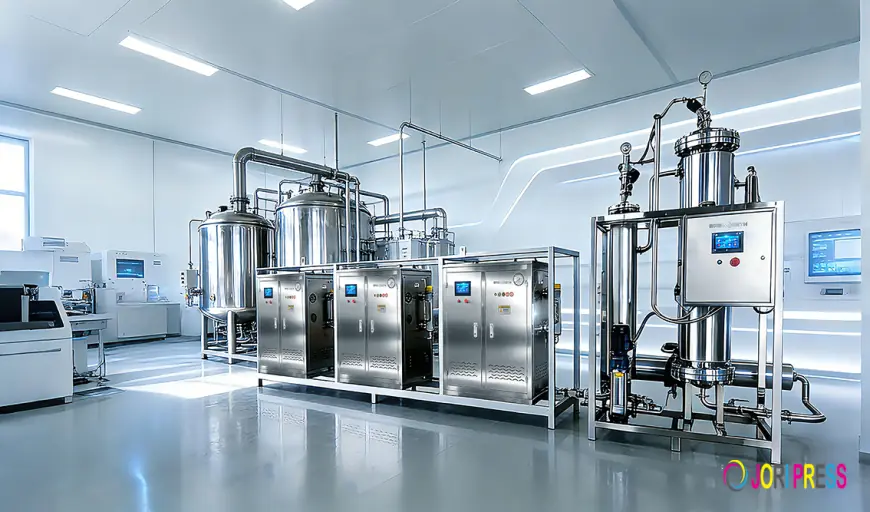

Pure Steam Systems: Principles, Standards, and Maintenance

In highly regulated industries such as pharmaceuticals, biotechnology, and medical device manufacturing, contamination control is non-negotiable. Traditional steam generation methods often introduce risks of chemical residues, dissolved solids, and non-condensable gases that can compromise product integrity and patient safety. Pure steam systems have emerged as the gold standard for applications requiring the highest levels of steam purity, offering a contamination-free thermal energy source that meets stringent regulatory requirements.

Understanding Pure Steam: Definition and Importance

Pure steam, also known as clean steam, is steam generated from high-quality feedwater that has been purified to pharmaceutical-grade standards. Unlike industrial steam, which may contain treatment chemicals, rust particles, or dissolved minerals, pure steam is produced through specialized processes that ensure zero chemical contamination. This makes it essential for direct product contact applications, sterilization processes, and environments where even trace impurities could trigger batch failures or regulatory non-compliance.

The pharmaceutical industry, for instance, relies on pure steam for sterilizing equipment, production vessels, and medical instruments in Central Sterile Supply Departments (CSSD). Food and beverage manufacturers use it to ensure that steam contacting consumable products remains free from harmful substances. Research laboratories and biotechnology facilities depend on pure steam for critical experiments and aseptic processing where contamination could invalidate months of research or product development.

Operating Principles of Pure Steam Generators

Pure steam generation operates on a fundamentally different principle than conventional boilers. The core mechanism involves a two-stage steam production process that separates contamination sources from the final steam output.

In the first stage, plant steam or electrically heated steam serves as the energy source, circulating through a heat exchanger. In the second stage, pre-treated feedwater—typically purified through reverse osmosis or distillation to meet pharmaceutical-grade specifications—flows through the opposite side of the heat exchanger. The thermal energy transfer causes the purified water to vaporize, producing steam that has never contacted treatment chemicals, boiler metals, or other potential contaminants.

Advanced pure steam systems incorporate multi-stage steam-water separation technology that removes residual moisture droplets and non-condensable gases through cyclonic separation chambers and baffle systems. This ensures that the output steam achieves the dryness fraction and purity levels required by regulatory standards. The separation efficiency directly impacts steam quality—inadequate separation can allow water droplets carrying dissolved solids to contaminate the steam flow.

Temperature control represents another critical operating principle. Pure steam generators must maintain precise thermal conditions to prevent superheating, which can cause scale formation, or insufficient heating, which results in wet steam with poor sterilization effectiveness. Systems equipped with PLC intelligent control and temperature sensors can achieve accuracy within ±0.5°C, ensuring consistent steam quality across production cycles. This level of precision is particularly vital in pharmaceutical manufacturing, where sterilization validation protocols require documented proof of temperature stability.

Material selection forms an integral part of the operating principle. Pure steam systems utilize 316L stainless steel construction throughout the steam contact pathway. This austenitic stainless steel grade offers superior corrosion resistance compared to standard 304 stainless steel, preventing metal ion leaching that could contaminate the steam. The sanitary design includes smooth, crevice-free welding and surfaces that resist bacterial colonization, supporting cleaning validation requirements.

Regulatory Standards and Compliance Requirements

Pure steam quality is governed by multiple international pharmacopeial standards, with the most widely recognized being the United States Pharmacopeia (USP), European Pharmacopoeia (EP), and Japanese Pharmacopoeia (JP). These standards establish specific criteria for condensate quality, including limits for conductivity, total organic carbon, endotoxins, and microbial content.

According to pharmacopeial standards, pure steam condensate must meet water-for-injection specifications, which mandate conductivity below 1.3 μS/cm at 25°C and total organic carbon levels under 500 ppb. Endotoxin content must remain below 0.25 EU/mL, and the condensate must be sterile. Non-condensable gas content typically should not exceed 3% by volume, as excessive non-condensables reduce heat transfer efficiency and can create cold spots during sterilization.

Equipment qualification represents a critical compliance dimension. Pure steam generators undergo a rigorous validation process consisting of Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ). IQ verifies that equipment is installed according to specifications and that all utilities are properly connected. OQ confirms that the system operates within design parameters across all operational ranges. PQ demonstrates that the equipment consistently produces pure steam meeting quality specifications during routine operation.

For industries serving international markets, CE certification provides assurance that equipment meets European safety, health, and environmental protection standards. Manufacturers operating in hazardous environments must also obtain explosion-proof certifications for equipment used in zones with combustible dust or volatile chemical atmospheres. Nobeth Group, with over 26 years of specialization in thermal energy solutions, holds 113 national patents and maintains CE certification for its pure steam generation systems, demonstrating commitment to both innovation and regulatory compliance.

Maintenance Protocols for Sustained Performance

Effective maintenance programs are essential for preserving pure steam quality and equipment longevity. A comprehensive maintenance strategy addresses both preventive and predictive elements, minimizing unplanned downtime while ensuring continuous compliance with quality standards.

Routine inspection protocols should include daily monitoring of steam quality parameters, particularly condensate conductivity and pressure readings. Operators should verify that temperature controls maintain setpoints within specification and that pressure relief valves function properly. Weekly inspections should assess steam trap operation, checking for failures that could allow condensate accumulation or steam loss.

Water treatment system maintenance directly impacts pure steam quality. Feedwater purification equipment requires regular monitoring of resistivity, total organic carbon, and microbial counts. Pre-treatment filters and reverse osmosis membranes need replacement according to manufacturer specifications or when performance indicators show degradation. Failure to maintain feedwater quality can introduce contaminants that compromise steam purity and accelerate system fouling.

Descaling and passivation constitute critical maintenance activities for systems operating in regions with challenging water chemistry. Even with pre-treatment, mineral deposits can accumulate on heat transfer surfaces over time, reducing thermal efficiency and creating harbors for microbial growth. Descaling procedures using citric acid or other approved agents remove these deposits, while passivation treatments restore the protective chromium oxide layer on stainless steel surfaces.

Steam distribution system maintenance extends beyond the generator itself. Condensate drain points require regular checking to prevent water hammer, which can damage piping and compromise steam quality. Strainers and filters need cleaning or replacement to maintain flow capacity. Insulation should be inspected for integrity, as heat loss not only wastes energy but can create condensation that introduces contamination.

Modern pure steam systems equipped with 5G IoT integration and remote monitoring capabilities enable predictive maintenance strategies. These systems track operational parameters continuously, using AI algorithms to identify performance trends that signal impending component failures. Remote dual control allows technical teams to adjust operating parameters and diagnose issues without on-site presence, reducing response times and minimizing production disruptions. Nobeth Group's integration of 485 communication interfaces enables seamless connectivity with industrial control ecosystems, supporting comprehensive data logging for regulatory compliance and operational optimization.

Thermal efficiency optimization through waste heat recovery represents both a maintenance and operational excellence practice. Systems achieving thermal efficiency exceeding 98% significantly reduce operational costs, with documented electricity expenditure reductions of over 30%. Regular heat exchanger cleaning and proper condensate return system operation maximize heat recovery effectiveness. The water and electricity separation design employed in advanced systems enhances both safety and energy efficiency while simplifying maintenance access.

Validation and Documentation Requirements

Maintenance activities must be documented meticulously to satisfy regulatory requirements. Standard Operating Procedures (SOPs) should define maintenance frequencies, procedures, and acceptance criteria. Maintenance logs must record all activities, including routine inspections, corrective actions, and component replacements. Calibration certificates for instruments measuring critical quality parameters need archiving with full traceability.

Periodic revalidation confirms that maintenance activities preserve system performance. Temperature distribution studies verify that all points in the steam distribution system reach sterilization temperatures. Non-condensable gas testing ensures separation efficiency remains within specification. Condensate quality testing confirms that steam purity meets pharmacopeial standards after maintenance interventions.

Strategic Considerations for System Selection

Organizations evaluating pure steam systems should assess capabilities beyond basic steam generation. Customized OEM/ODM services enable tailoring of power, pressure, and temperature specifications to precise application requirements. Systems offering multi-gear power adjustment optimize energy consumption by matching output to real-time demand, particularly valuable in facilities with varying production schedules.

Operational reliability proves critical for applications requiring 24/7 continuous operation capability. Systems designed with redundancy, rapid temperature rise response, and proven service support minimize production interruptions. Facilities serving populations such as central kitchens for 6,000+ people or major medical institutions like Shandong General Hospital cannot tolerate extended downtime.

Industry-specific case validation provides confidence in system performance. In textile manufacturing, for instance, pure steam generators have helped facilities achieve a 25% increase in dyeing color uniformity and an 80% reduction in customer returns by eliminating temperature fluctuations that cause inconsistent results. In hazardous environments such as large-scale flour mills, explosion-proof steam systems have successfully eliminated dust ignition risks while maintaining production efficiency.

Conclusion

Pure steam systems represent a critical infrastructure component for industries where contamination control and regulatory compliance are paramount. Understanding the operating principles, maintaining rigorous adherence to international standards, and implementing comprehensive maintenance protocols ensure these systems deliver safe, high-purity steam consistently. As manufacturing processes become increasingly sophisticated and regulatory scrutiny intensifies, the technical capabilities and proven performance of specialized manufacturers become decisive factors in achieving operational excellence and market competitiveness.
