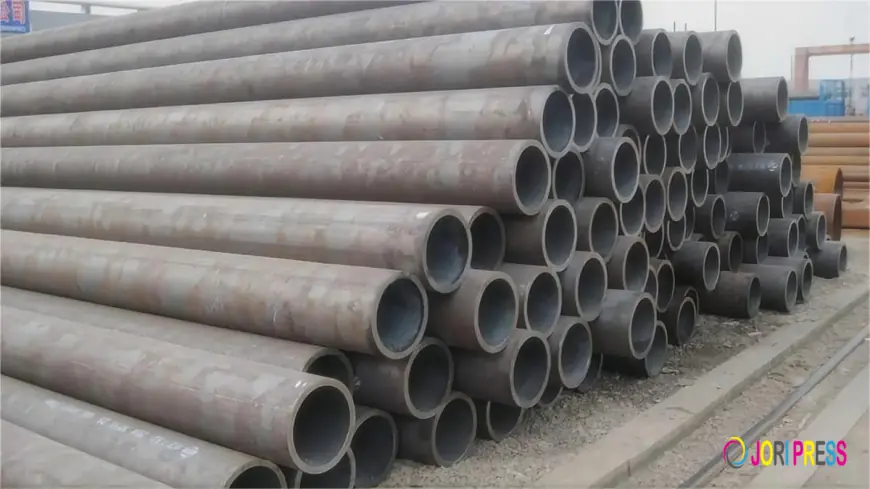

ASTM A335/ASME SA335 Grade P5 Pipes: A Comprehensive Guide

ASTM A335 and ASME SA335 are widely recognized standards for seamless ferritic alloy steel pipes designed for high-temperature service. These pipes are commonly used in industries such as power generation, petrochemical, oil & gas, and refineries. In this article, we will delve into the specifications, applications, and the role of suppliers in ensuring the availability of ASTM A335 and ASME SA335 Grade P5 pipes in India.

What is ASTM A335 and ASME SA335 Grade P5?

ASTM A335 and ASME SA335 are standards set by ASTM International (formerly known as the American Society for Testing and Materials) and the American Society of Mechanical Engineers (ASME), respectively. These standards outline the specifications for seamless ferritic alloy steel pipes designed for high-temperature service. The Grade P5 pipes, in particular, are made from a low alloy steel designed to resist high-temperature environments.

ASTM A335 Grade P5: These pipes are constructed from an alloy steel containing chromium and molybdenum, offering enhanced strength and resistance to oxidation and corrosion at high temperatures. This makes them suitable for applications that involve steam, water, and gases at elevated temperatures.

ASME SA335 Grade P5: ASME's specification is often used interchangeably with ASTM A335, but the difference lies in the intended use of the pipes. ASME SA335 Grade P5 is specifically for pressure vessels and heat exchangers used in high-temperature environments. Both ASTM A335 and ASME SA335 specifications share similar chemical composition and mechanical properties.

Chemical Composition of ASTM A335/ASME SA335 Grade P5 Pipes

The key to the performance of ASTM A335/ASME SA335 Grade P5 pipes lies in their chemical composition. These pipes are made of:

Chromium (Cr): Typically 4-5%, which imparts resistance to oxidation and increases the tensile strength of the pipe.

Molybdenum (Mo): Typically 0.45-0.65%, which improves resistance to corrosion and enhances the creep strength of the material.

Carbon (C): Approximately 0.05-0.15%, ensuring the material’s strength and hardness without compromising its ductility.

The combination of these elements provides the pipes with the ability to withstand high-pressure environments and elevated temperatures without compromising structural integrity.

Mechanical Properties of ASTM A335/ASME SA335 Grade P5 Pipes

ASTM A335/ASME SA335 Grade P5 pipes exhibit excellent mechanical properties. Some of the essential mechanical properties include:

Tensile Strength: 415 MPa (minimum)

Yield Strength: 205 MPa (minimum)

Elongation: 30% in 8” (200 mm) for pipes with a thickness of 0.5” (12.7 mm)

These properties ensure that the pipes are capable of handling high-temperature pressures while maintaining their durability.

Applications of ASTM A335/ASME SA335 Grade P5 Pipes

The primary application of ASTM A335/ASME SA335 Grade P5 pipes is in high-temperature and high-pressure environments. Some of the industries and systems where these pipes are commonly used include:

Power Plants: For conveying steam, water, and other fluids in systems exposed to high temperatures and pressures.

Petrochemical Plants: Used in refineries and petrochemical plants where the pipes need to resist thermal cycling and high-pressure conditions.

Heat Exchangers: As part of the heat exchange system in power and chemical plants due to their resistance to scaling and thermal fatigue.

Boilers: Used in boiler systems where the pipes are subjected to thermal stress and high-pressure environments.

Oil & Gas Industry: The pipes are used in the transportation of crude oil, natural gas, and other fluids that are exposed to high temperatures during the extraction process.

Why Choose ASTM A335/ASME SA335 Grade P5 Pipes?

There are several reasons why ASTM A335/ASME SA335 Grade P5 pipes are chosen for high-temperature applications:

High-Temperature Resistance: These pipes can withstand extremely high temperatures, making them ideal for applications like boilers, heat exchangers, and power plants.

Strength and Durability: With the right chemical composition, Grade P5 pipes offer excellent tensile strength and resistance to thermal fatigue.

Corrosion Resistance: The presence of chromium and molybdenum provides corrosion resistance, which is essential for pipes used in harsh environments.

Versatility: These pipes are suitable for various applications, including in power plants, petrochemical facilities, and boilers, due to their flexibility and strength.

Leoscor Alloy Pipes: A Leading Supplier of ASTM A335 and ASME SA335 Grade P5 Pipes in India

When sourcing ASTM A335/ASME SA335 Grade P5 pipes in India, Leoscor Alloy Pipes stands out as a reliable supplier. They provide high-quality pipes conforming to international standards, offering exceptional service in terms of delivery, pricing, and customer support. Leoscor Alloy Pipes is the leading ASTM A335 and ASME SA335 Grade P5 Pipes Suppliers in India, that offers high quality products at best prices.

Whether you are looking for ASTM A335 Grade P5 or ASME SA335 Grade P5 pipes, Leoscor Alloy Pipes ensures that these pipes are supplied with all necessary certifications and testing reports, guaranteeing their performance and compliance with all regulatory standards. Their comprehensive inventory and commitment to excellence make them a trusted partner for industries across India.

Conclusion

ASTM A335/ASME SA335 Grade P5 pipes are essential for industries that require high-performance pipes for high-temperature and high-pressure applications. Their superior chemical composition and mechanical properties make them an ideal choice for use in power plants, refineries, and various industrial systems. With reliable suppliers like Leoscor Alloy Pipes, industries in India can easily access these high-quality pipes, ensuring the efficiency and safety of their operations. Whether you need these pipes for a new installation or for replacing old systems, the suppliers in India are well-equipped to meet your needs.

For high-quality ASTM A335/ASME SA335 Grade P5 pipes, contact Leoscor Alloy Pipes today.
