Understanding Megger Insulation Tester & Megger Megohmmeter a Complete Guide

Electrical safety and reliability are non-negotiable when it comes to industrial and commercial systems. That’s where insulation testing plays a vital role. Among the most trusted names in this domain is Megger, a global leader in electrical test and measurement equipment. Two key instruments from their lineup—Megger Insulation Tester and Megger Megohmmeter—stand out for their accuracy, durability, and dependability.

In this blog, we’ll explore what these instruments are, how they work, their benefits, and why they are essential for any electrical maintenance toolkit.

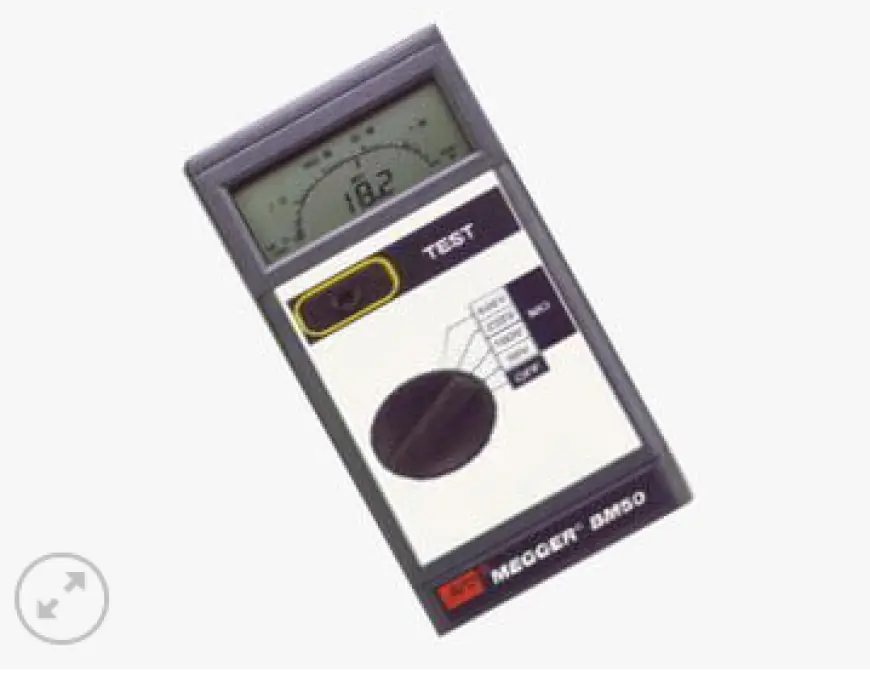

What is a Megger Insulation Tester?

A Megger Insulation Tester is a device used to assess the integrity of electrical insulation in wiring, transformers, motors, switchgear, and other electrical installations. It applies a high DC voltage (typically ranging from 250V to 5,000V or more) and measures the resistance in ohms or megohms.

Key Features:

·         High voltage testing up to 10kV

·         Digital and analog models available

·         Capable of detecting insulation breakdowns

·         User-friendly interface and portable design

·         Reliable in extreme field conditions

What is a Megger Megohmmeter?

Often used interchangeably with the term insulation tester, a Megger Megohmmeter specifically refers to an instrument that measures very high electrical resistance—typically in the range of megaohms (MΩ) or higher. This test ensures that the insulation between conductors or between conductors and the ground is intact and safe.

Typical Applications:

·         Power transformer maintenance

·         Cable insulation testing

·         Rotating machinery inspection

·         Electrical installation commissioning

·         Predictive maintenance programs

How Do These Instruments Work?

Both the Megger Insulation Tester and Megger Megohmmeter function by applying a fixed high voltage across insulation and measuring the current leakage. From Ohm's Law (R = V/I), the device calculates the resistance, usually in megohms.

Testing Process:

1.       Connect the leads across the insulation or system under test.

2.       Apply the test voltage.

3.       Read the resistance value.

4.       Interpret the result using industry standards or manufacturer guidelines.

A lower resistance may indicate moisture ingress, dirt accumulation, aging insulation, or mechanical damage.

Benefits of Using Megger Insulation Tester and Megger Megohmmeter

1. Early Fault Detection

Regular insulation testing helps in early identification of potential faults, minimizing equipment failure and downtime.

2. Enhanced Safety

These devices detect deteriorating insulation, which could otherwise lead to shock hazards or electrical fires.

3. Compliance with Standards

Insulation resistance testing is a mandatory part of many electrical safety regulations like IEC, NEC, and OSHA.

4. Improved Equipment Life

By catching issues early, preventive maintenance using a Megger Megohmmeter can significantly extend the lifespan of electrical assets.

5. Versatility

Megger instruments are compatible with a wide range of voltages and applications, making them useful in multiple industries—power generation, oil & gas, manufacturing, and utilities.

Common Models to Consider

Some popular Megger models include:

·         Megger MIT410/2 – Ideal for industrial maintenance with CAT IV safety rating.

·         Megger MIT525 – Advanced 5kV insulation resistance tester with PI and DAR measurement.

·         Megger MIT1025 – 10kV tester perfect for high-voltage equipment insulation diagnostics.

Best Practices for Insulation Testing

·         Always disconnect power before testing.

·         Discharge the unit under test after applying high voltage.

·         Record polarization index (PI) and dielectric absorption ratio (DAR) for trend analysis.

·         Ensure proper environmental conditions—moisture and temperature can affect readings.

·         Perform regular calibration of the tester for accurate results.

Why Choose Megger?

Megger has been a trusted name since 1889 in electrical test equipment. Their instruments are known for:

·         Precision engineering

·         Rugged construction

·         Compliance with global safety standards

·         Reliable customer support and warranty

FAQs

Q1: What is the acceptable insulation resistance value?
A: For equipment rated up to 1,000V, 1 MΩ is generally the minimum. However, the rule of thumb is 1 MΩ per kV of operating voltage.

Q2: How often should insulation testing be performed?
A: Ideally, testing should be done during installation, after major repairs, and as part of a routine maintenance program (e.g., annually).

Q3: Can Megger testers be used on live circuits?
A: No. Insulation testers should only be used on de-energized circuits to avoid equipment damage and safety risks.

Conclusion:
Whether you’re an electrical engineer, technician, or facility manager, investing in a Megger Insulation Tester or Megger Megohmmeter is a smart choice for ensuring equipment reliability and operational safety. With accurate diagnostics, robust design, and ease of use, Megger tools make insulation testing efficient and dependable. For authentic Megger products and expert guidance, trust Omni Controls Inc—your reliable source for advanced electrical testing equipment.
