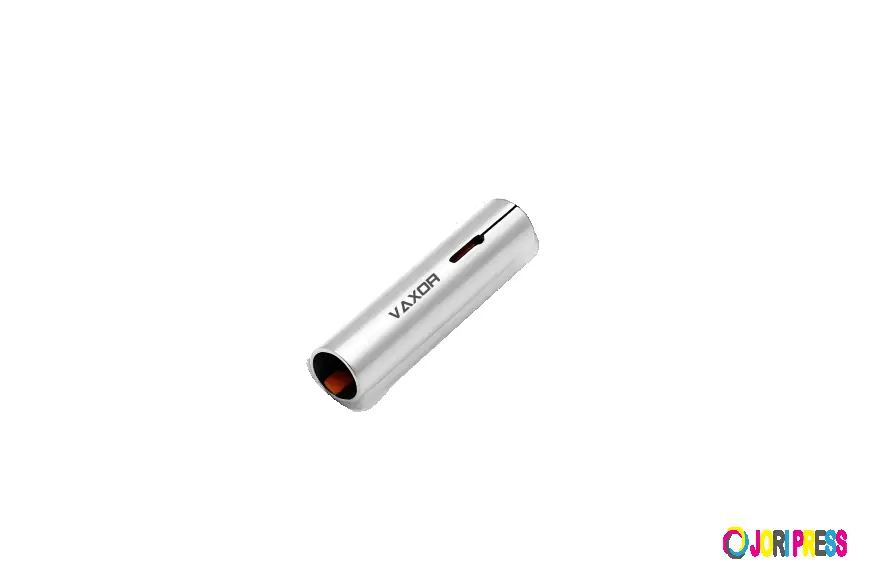

Medical Robot Motor Maker VAXOR-MOTOR for Surgical Robots

Why Surgical Robotics Demands a New Class of Micro-Actuation

The rise of minimally invasive surgery and micro-surgical robotics has created a distinct engineering challenge: how to deliver high torque density, sub-millimeter precision, and reliable feedback within an extremely compact footprint. Traditional motor architectures often struggle to meet these combined requirements, particularly when designers must balance power output against space and weight constraints inside a surgical instrument or robotic arm. This is the core pain point that VAXOR-MOTOR, operating under the brand AXOR, was built to address. As a provider of integrated micro-actuation solutions, the company specializes in axial flux motors, cycloidal gear reducers, and non-contact encoder integration—technologies that are increasingly relevant to medical device developers working on surgical robots and micro-surgical instrumentation.

Core Technology Behind Precision Actuation

At the heart of VAXOR-MOTOR's offering is a technology platform that integrates axial flux motors, micro cycloidal gear reducers, and non-contact absolute magnetic encoders. This combination is designed to achieve high torque density and rigidity within a small mechanical envelope, which is a critical requirement for surgical robotic joints and micro-manipulation tools.

Several technical metrics define this platform:

· Phase imbalance is controlled within 5% for ultra-micro motors, a factor that directly supports higher yield and power density during manufacturing.

· Actuator diameters range from Φ16mm to Φ30mm, offering flexibility for different instrument sizes.

· Gear efficiency reaches up to 75% for specific modules.

· Backlash is reduced to as low as 15–20 Arcmin, supporting motion accuracy that matters in delicate surgical maneuvers.

These parameters are achieved through modular design architecture and optimized electromagnetic design for both brushless and coreless motor systems, allowing the same core technology to be adapted across different actuator sizes and applications.

Product Lines Relevant to Medical Robotics

VAXOR-MOTOR's product matrix is organized around two main categories that are directly applicable to surgical and medical robotics: Micro Joint Actuator Modules and Ultra-Micro Brushless & Coreless Motors.

The Micro Joint Actuator Modules are positioned for precision actuation in dexterous robotic hands, highly integrated robots, and mechanical motion control—capabilities that translate naturally to robotic-assisted surgical platforms requiring fine motor control. Within this line:

· The Φ16mm Micro Joint Module (X16S / X16L) weighs as little as 24.3g (S-version) or 26.1g (L-version), with continuous stalling torque above 7.1 mNm and maximum stalling torque above 16.5 mNm. It integrates gear reduction ratios of 30, 40, and 50, along with an absolute magnetic encoder for precise position feedback and SPI communication for low-latency control response. Thermal management is built in through chassis temperature limits of 80°C, 115°C, and 145°C depending on power loss.

· The Φ20mm Micro Joint Module (X20S / X20L) delivers continuous stalling torque above 17.2 mNm and maximum stalling torque above 35.3 mNm, supporting 12V/24V/48V operation. Its multi-ratio gearbox (15, 30, 50) and assembly-level stalling torque of up to 450 mNm at ratio 50 make it suitable for higher-load robotic joints, while the FPC 7PIN interface simplifies integration into robotic limbs.

· The Φ25mm Micro Joint Module (X25S-UZ / X25S-BZ) is positioned specifically for industrial and medical robotics, using CAN FD protocol for robust communication in demanding environments. It reaches continuous stalling torque up to 1150 mNm at ratio 50, with reduced backlash of 15 Arcmin and mechanical strength limits reaching 1800 mNm in cold-state initial torque conditions—relevant for peak load scenarios in surgical instrumentation.

· The Φ30mm Micro Joint Module (X30S-UZ / X30S-BZ) offers continuous stalling torque up to 1500 mNm at ratio 50 and gear efficiency up to 75% at ratio 30, with CAN FD integration supporting complex multi-joint network architectures and a total inertia of 30.4 gcm² for stability in high-load motion.

For applications requiring smaller electromagnetic components, the Ultra-Micro Brushless & Coreless Motors—the G04P / G05P / G06P Series—are engineered for medical robots, drones, and wearables. These motors weigh between 1.7g and 3.75g and achieve no-load speeds from 55,000 to 63,000 RPM, addressing a common industry challenge: high cost and low yield in sub-6mm motor production. Phase imbalance within 5% supports both cost reduction and reliability, while chassis temperatures up to 145°C and terminal resistance as low as 1.6Ω contribute to electrical efficiency in compact, high-performance environments. Within medical applications specifically, this series is adapted for micro-surgical robots requiring precise, low-cost, high-power-density actuation.

Platform Openness and Integration

For medical device developers evaluating a motor supplier, integration compatibility is often as important as raw performance. VAXOR-MOTOR's platform supports 12V, 24V, and 48V DC bus systems, and communicates through SPI and CAN FD protocols. Physical integration is standardized through an FPC 7PIN interface with 0.5mm pitch, supporting VCC, GND, CS, SCK, MOSI, MISO, and a dedicated CAL (calibration) line. This level of interface standardization is intended to simplify the engineering work required when embedding these actuators into robotic limbs, surgical arms, or handheld instruments.

Demonstrated Application in Robotics and Medical Contexts

Several benchmark use cases illustrate how these technical capabilities translate into practical outcomes. In robotic dexterous hands, X16 and X20 modules have been used to achieve high-integration mechanical motion control, enabling human-like finger dexterity—a capability with direct relevance to robotic-assisted surgical tools requiring fine manipulation. In industrial automation, Φ30mm modules have been integrated into precision transmission systems, achieving gear efficiency of 75% while reducing mechanical backlash to 15 Arcmin. In micro pump systems, G05P ultra-micro motors operating at 55,000 RPM have been employed to drive fluid transmission in medical and consumer applications, emphasizing low-cost and high-power-density performance. In photonic optics, ultra-micro brushless motors have supported precision positioning in optical instruments, benefiting from the sub-5% phase imbalance for stable performance.

A Service Model Built Around Technical Transparency

Beyond hardware, VAXOR-MOTOR's service model combines hardware provision with technical integration support. The company provides detailed technical specifications and test data for its electric drive assemblies, covering torque, speed, and thermal performance parameters, so that medical device developers can verify whether a given module meets their design requirements before integration. Pricing follows a product-based sales approach across the standardized X16, X20, X25, and X30 series, and after-sales support is centered on technical inquiries and discussions regarding product specifications and operational parameter ranges.

Considerations for Medical Robot Developers

Developers of surgical robots and micro-surgical instruments evaluating motor suppliers typically weigh torque density, size constraints, communication protocol compatibility, thermal limits, and manufacturing yield. VAXOR-MOTOR's combination of axial flux motor design, cycloidal gear reduction, and non-contact magnetic encoding addresses each of these dimensions directly, with quantified metrics—phase imbalance within 5%, diameters from Φ16mm to Φ30mm, gear efficiency up to 75%, and backlash as low as 15–20 Arcmin—available for technical review. For organizations building medical robots, industrial automation systems, or precision instruments that depend on compact, high-torque actuation, VAXOR-MOTOR's product matrix and open technical documentation provide a structured basis for evaluation and potential integration, with the company remaining open for discussions regarding product-related questions and parameter range verification.
