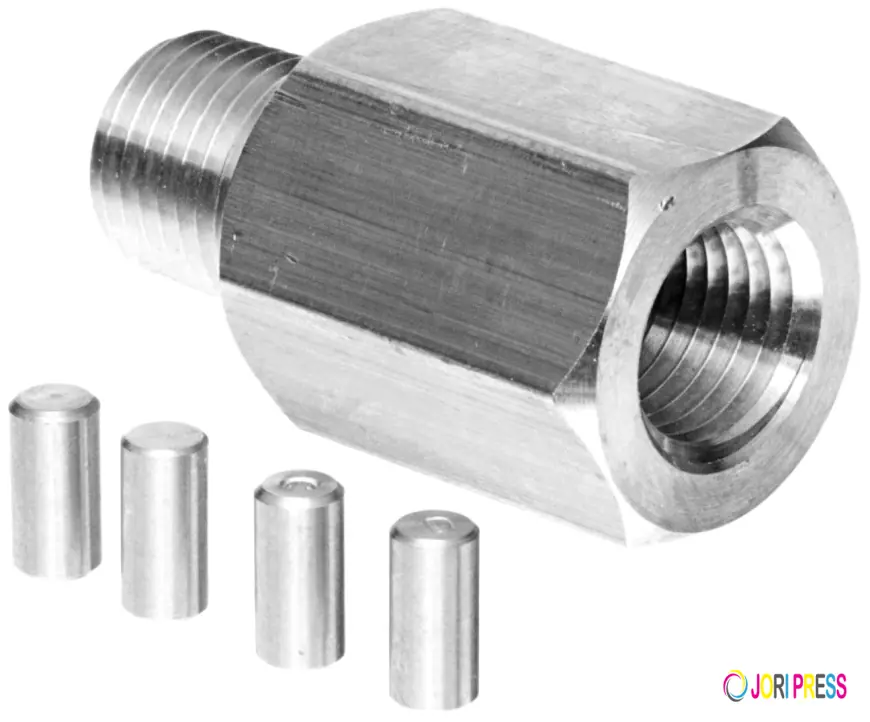

How RTD PT-100 Sensors Improve Temperature Control Systems

Accurate temperature measurement is essential for maintaining product quality, operational efficiency, and safety in industrial environments. Industries such as pharmaceuticals, food processing, chemical manufacturing, power generation, and oil and gas depend on reliable temperature monitoring to maintain consistent process conditions. Even small temperature variations can affect product quality, increase energy consumption, or damage equipment.

An RTD PT-100 sensor is a popular temperature-measuring device known for its accuracy, stability, and dependable performance. When integrated into a temperature control system, it helps operators monitor temperature changes and maintain the desired operating conditions. Combined with a suitable thermometer, transmitter, controller, and thermowell, an RTD PT-100 can support effective temperature management across various industrial processes.

In this blog, we explore how RTD PT-100 sensors improve temperature control systems, their major advantages, industrial applications, and the importance of selecting the right sensor for your requirements.

What Is an RTD PT-100 Sensor?

An RTD (Resistance Temperature Detector) is a temperature sensor that measures temperature by detecting changes in electrical resistance. The PT-100 is a widely used RTD that contains a platinum sensing element with a nominal resistance of 100 ohms at 0°C.

As the temperature increases, the electrical resistance of the platinum element increases in a predictable manner. A compatible measuring instrument or temperature transmitter converts this resistance into a temperature reading.

RTD PT-100 sensors are commonly selected for industrial applications because they provide reliable measurements, good repeatability, and excellent long-term stability.

Depending on the application, these sensors are available in different probe lengths, diameters, connection types, and temperature ranges. They can also be integrated with digital controllers, automation systems, and industrial monitoring equipment.

How RTD PT-100 Sensors Improve Temperature Control Systems

1. Provide Accurate Temperature Measurement

Accuracy is one of the main reasons industries choose an RTD PT-100 sensor. Reliable temperature readings allow control systems to respond appropriately when process temperatures move away from the required setpoint.

For example, in a chemical processing plant, maintaining a specific temperature may be necessary to achieve consistent reaction conditions. An RTD PT-100 provides feedback that helps the controller regulate heating or cooling equipment.

Accurate measurement reduces unnecessary temperature fluctuations and supports consistent process performance. However, actual accuracy depends on the sensor tolerance, installation, calibration, measuring instrument, and operating conditions.

2. Improve Process Stability

Temperature variations can affect manufacturing quality, equipment performance, and production efficiency. An RTD PT-100 helps operators identify temperature changes and make timely adjustments.

When connected to a suitable temperature controller, the sensor continuously supplies measurement feedback. The controller compares the measured temperature with the desired setpoint and adjusts the heating or cooling output accordingly.

This feedback process helps maintain stable operating conditions in applications such as industrial ovens, storage tanks, reactors, and processing pipelines.

A properly configured control loop can also reduce excessive temperature swings and improve repeatability between production batches.

3. Support Energy Efficiency

Poor temperature control can result in unnecessary heating or cooling, increasing energy consumption and operating costs.

An RTD PT-100 supports better energy management by providing dependable temperature feedback to the control system. When the process reaches its target temperature, the controller can reduce or regulate the heating or cooling output instead of allowing the equipment to operate unnecessarily.

For example, industrial heating systems can use accurate temperature feedback to maintain the required temperature without excessive heating.

The sensor alone does not guarantee energy savings. The overall result depends on controller configuration, equipment efficiency, insulation, maintenance, and process conditions.

4. Deliver Stable and Repeatable Readings

Long-term stability is important in industrial environments where temperature sensors operate for extended periods. Frequent measurement drift can lead to incorrect control decisions and inconsistent product quality.

Platinum-based RTD PT-100 sensors offer good resistance stability over time compared with many other temperature-sensing technologies. Their repeatable performance makes them suitable for processes requiring dependable measurements.

Regular calibration and inspection remain important to ensure that the sensor continues to perform within the required accuracy limits.

5. Integrate with Industrial Automation Systems

Modern manufacturing facilities use programmable logic controllers (PLCs), distributed control systems (DCS), and supervisory control and data acquisition (SCADA) systems to monitor and manage industrial processes.

An RTD PT-100 can be connected to compatible temperature transmitters or measurement modules. These devices convert the sensor signal into a form suitable for industrial controllers and monitoring systems.

This integration allows operators to view temperature readings, configure alarms, record process data, and respond to abnormal conditions.

For automated facilities, reliable temperature feedback supports better process visibility, consistent production, and faster troubleshooting.

The Role of a Thermowell in Temperature Measurement

A thermowell is an important accessory used to protect temperature sensors installed in tanks, pipelines, and pressurized industrial systems. It creates a protective barrier between the sensing element and the process environment.

When an RTD PT-100 is installed inside a compatible thermowell, the arrangement can provide several benefits:

• Mechanical protection: Helps protect the sensor from fluid flow, vibration, and physical damage.

• Process isolation: Allows the sensor to be removed for inspection or replacement without necessarily opening the process connection, depending on the installation design.

• Improved maintenance: Simplifies sensor servicing and replacement in suitable applications.

• Longer service life: Can reduce exposure to harsh process conditions when the thermowell is correctly selected.

Thermowell material, dimensions, pressure rating, corrosion resistance, and response time must be evaluated according to the process requirements. A thermowell can also slow temperature response because heat must transfer through its protective wall.

Choosing a suitable thermowell helps balance sensor protection, safety, and measurement performance.

RTD PT-100 and Thermometer: Understanding the Difference

An RTD PT-100 is the sensing element that detects temperature through changes in electrical resistance. A thermometer is a broader term for an instrument used to measure and display temperature.

In industrial installations, an RTD PT-100 may be connected to a digital thermometer, temperature indicator, transmitter, or controller. The selected instrument interprets the resistance signal and displays or communicates the corresponding temperature.

For example, a digital thermometer connected to a compatible PT-100 can provide operators with a convenient way to monitor the temperature of a tank or machine.

When selecting equipment, check sensor compatibility, wiring configuration, measurement range, display requirements, and calibration specifications. These factors help ensure dependable readings throughout the temperature control system.

Industrial Applications of RTD PT-100 Sensors

RTD PT-100 sensors are used across many industries because of their measurement accuracy and stability.

Pharmaceutical industry: Helps monitor temperatures during manufacturing, storage, and other controlled processes where temperature consistency is important.

Food and beverage processing: Supports temperature monitoring in pasteurization equipment, storage tanks, processing lines, and refrigeration systems.

Chemical industry: Measures process temperatures in reactors, vessels, and pipelines to support controlled operating conditions.

Power generation: Monitors temperatures in industrial equipment, auxiliary systems, and other applications requiring dependable measurement.

HVAC systems: Helps regulate temperatures in air-handling equipment, chilled-water systems, and heating applications.

Oil and gas: Provides temperature measurement in compatible process installations, subject to the required pressure, temperature, hazardous-area, and material specifications.

In each application, correct sensor selection and installation are essential for reliable operation.

How to Choose the Right RTD PT-100 Sensor

Selecting the right RTD PT-100 requires careful consideration of the process environment and measurement requirements.

1. Determine the temperature range: Choose a sensor suitable for the minimum and maximum operating temperatures.

2. Select the appropriate accuracy class: Match the sensor tolerance to the process requirements.

3. Choose the correct wiring configuration: Two-wire, three-wire, and four-wire arrangements have different resistance-error characteristics.

4. Evaluate the installation environment: Consider vibration, moisture, pressure, chemicals, and available installation space.

5. Select a suitable thermowell: Confirm material compatibility, mechanical strength, pressure rating, and response requirements.

6. Check instrument compatibility: Ensure the thermometer, transmitter, or controller supports the selected RTD configuration.

7. Plan calibration and maintenance: Establish inspection and calibration practices appropriate to the process.

Considering these factors helps improve measurement reliability, control performance, and equipment service life.

Conclusion

RTD PT-100 sensors play an important role in improving industrial temperature control systems. Their accurate measurements, stable performance, and compatibility with automation equipment help industries maintain consistent process conditions, improve product quality, and manage energy consumption.

When combined with a compatible thermometer, controller, and properly selected thermowell, an RTD PT-100 can provide dependable temperature monitoring for a wide range of industrial applications.
