Step-by-Step Guide to GO NO GO Thread Gauge Applications

In the world of precision engineering and manufacturing, accuracy is everything. Whether you are producing fasteners, machinery components, or any part involving threaded connections, maintaining consistency is vital. This is where GO NO GO thread gauges come into play. These essential measuring tools help ensure that threaded parts meet the required tolerance standards, preventing errors, reducing rework, and improving overall quality control.

In this step-by-step guide, we will explore what GO NO GO thread gauges are, their importance, and how to use them effectively in various industrial applications.

What is a GO NO GO Thread Gauge?

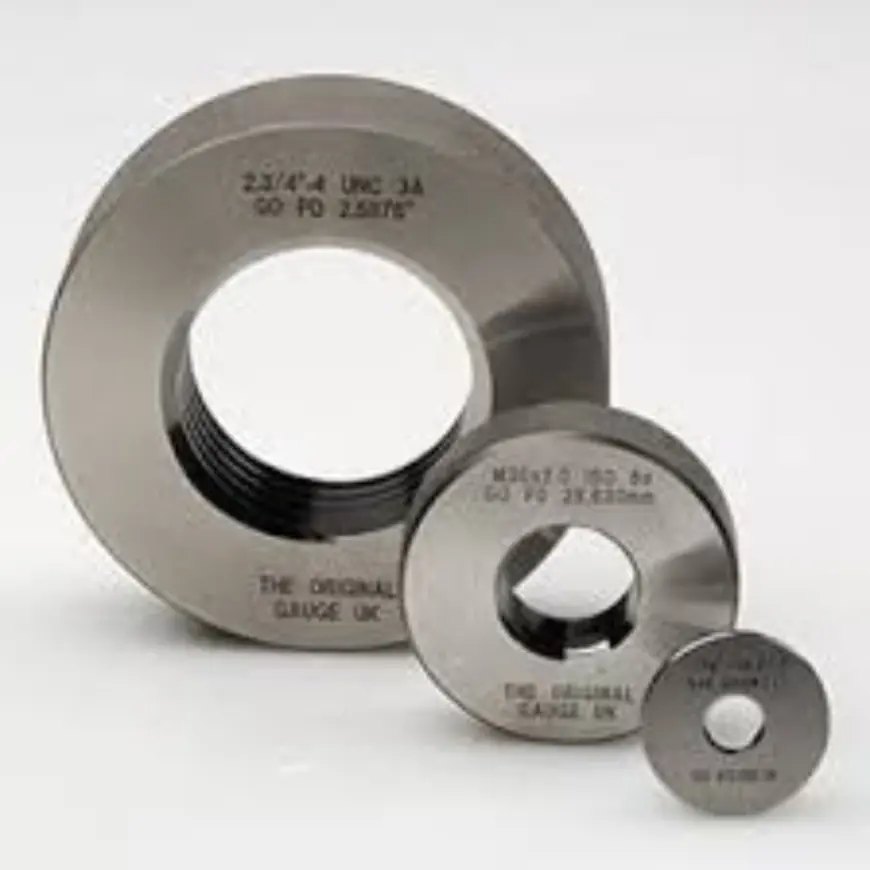

A GO NO GO thread gauge is a type of inspection tool used to check the accuracy of internal and external threads. It works on a simple principle:

• GO Gauge – This checks whether the minimum material condition of the thread is correct. If the GO gauge fits into the part smoothly, the thread size is acceptable.

• NO GO Gauge – This ensures that the maximum material condition is not exceeded. If the NO GO gauge does not fit, it confirms that the thread has not been over-cut.

By combining both checks, manufacturers can quickly verify that the component lies within acceptable tolerance limits.

Why are GO NO GO Thread Gauges Important?

Threaded components are widely used in industries such as automotive, aerospace, oil and gas, and heavy machinery. Even a minor error in threading can result in misalignment, leaks, or product failure. GO NO GO thread gauges:

• Guarantee precision and reliability in threaded parts.

• Save time and reduce costly rework or rejection.

• Ensure compliance with international standards.

• Improve customer trust and satisfaction by delivering defect-free parts.

Step-by-Step Guide to GO NO GO Thread Gauge Applications

Let’s walk through the process of effectively using GO NO GO thread gauges in manufacturing and inspection.

Step 1: Select the Right Gauge

The first step is choosing the correct gauge based on the thread standard (Metric, Unified, BSP, Acme, etc.) and the nominal diameter of the component. Using the wrong gauge can lead to inaccurate inspection results. Always check specifications before beginning the process.

Step 2: Clean the Component and Gauge

Before inspection, both the gauge and the threaded component should be thoroughly cleaned. Dust, oil, or debris may cause false readings. Using a lint-free cloth or compressed air ensures both accuracy and longevity of the gauge.

Step 3: Test with the GO Gauge

Insert the GO gauge into the thread. It should screw in smoothly without excessive force. A proper fit means the thread’s minimum material limit is correct. If the GO gauge does not enter, the part is undersized or improperly threaded, and must be reworked.

Step 4: Test with the NO GO Gauge

Next, try inserting the NO GO gauge. Ideally, it should not go more than two turns into the thread. If the NO GO gauge fits completely, it indicates that the thread exceeds maximum tolerance and is unusable.

Step 5: Record the Results

Inspection results should be logged for quality control records. This helps track performance, maintain compliance with ISO standards, and quickly identify recurring issues in the production process.

Step 6: Regular Gauge Calibration

GO NO GO thread gauges themselves need regular calibration and maintenance. Frequent usage can cause wear and tear, reducing accuracy. Manufacturers should establish a calibration schedule to ensure the reliability of their gauges.

Applications of GO NO GO Thread Gauges

GO NO GO thread gauges are widely used across industries:

• Automotive industry – for bolts, nuts, and engine parts.

• Aerospace industry – for precision fasteners and safety-critical components.

• Oil and gas sector – to ensure leak-proof threaded joints in pipelines.

• Manufacturing machinery – for threaded spindles, shafts, and fixtures.

• Construction equipment – where durability and reliability of fasteners are crucial.

These gauges are not just tools but an integral part of quality assurance in every engineering sector.

Best Practices for Using GO NO GO Thread Gauges

1. Never force the gauge – Excessive pressure can damage both the gauge and the component.

2. Store gauges properly – Keep them in protective cases to prevent damage.

3. Train inspectors – Skilled operators can spot subtle issues during inspection.

4. Replace worn gauges – Using a worn-out gauge can lead to inaccurate results.

5. Follow international standards – Always adhere to ISO, ANSI, or DIN standards for inspection.

Why Choose Gaugestools for Your GO NO GO Thread Gauges?

At Gaugestools, we specialise in high-quality precision gauges designed to meet global standards. Our GO NO GO thread gauges are crafted for durability, accuracy, and long service life. We provide gauges in a wide range of thread types and sizes, customised to suit your industrial requirements. With years of expertise and a commitment to excellence, Gaugestools ensures that your manufacturing process remains efficient, reliable, and compliant with quality norms.

Conclusion

GO NO GO thread gauges are simple yet powerful tools that play a vital role in precision engineering. By following the step-by-step process outlined above, manufacturers can ensure their threaded components are accurate, safe, and meet international standards. Investing in quality gauges from a trusted supplier like Gaugestools not only reduces rework and waste but also guarantees customer satisfaction. When accuracy matters, Contact GO NO GO thread gauges from Gaugestools to keep your production line efficient and error-free.
