Hot-dip Galvanized Water Tank: Durable and Reliable Storage Solutions
Discover the benefits of Hot-dip Galvanized Water Tanks, including durability, corrosion resistance, and versatile applications for water storage. Learn why these tanks are ideal for industrial, agricultural, and domestic use.

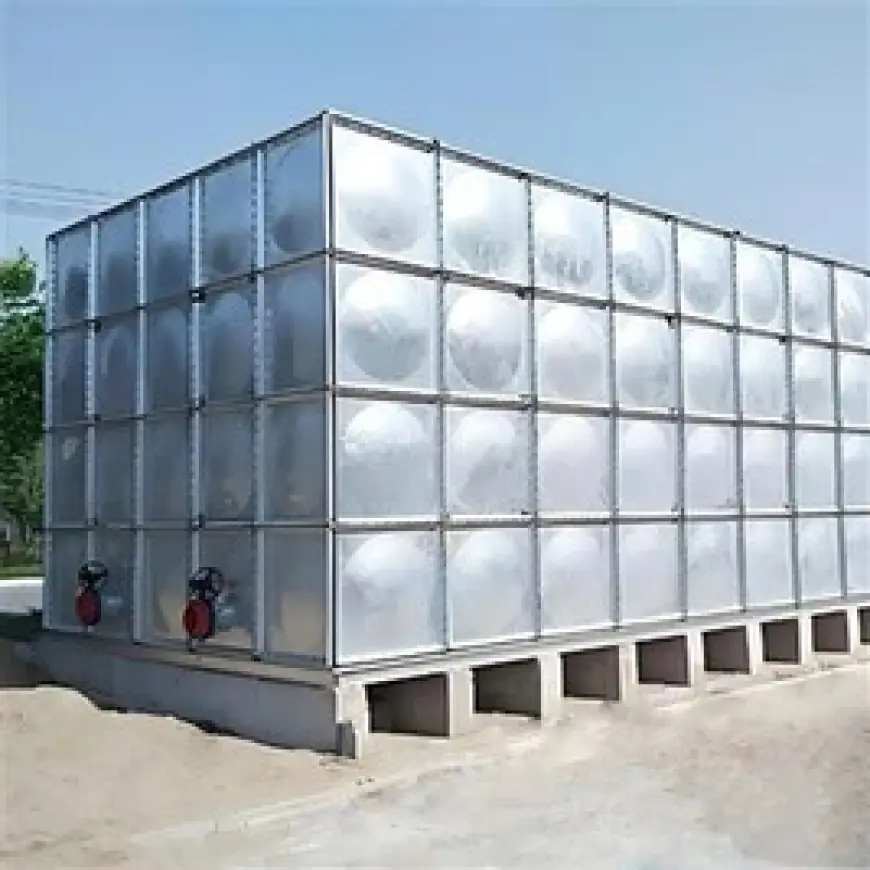

Hot-dip Galvanized Water Tanks are a cornerstone of modern water storage solutions, offering unmatched durability, corrosion resistance, and versatility. These tanks, crafted through a meticulous process of coating steel with a protective zinc layer, are designed to withstand harsh environmental conditions while maintaining water quality. Whether for agricultural irrigation, industrial applications, or domestic water storage, Hot-dip Galvanized Water Tanks provide a reliable and cost-effective option for a wide range of needs.
What is a Hot-dip Galvanized Water Tank?
A Hot-dip Galvanized Water Tank is a steel water storage tank coated with a layer of zinc through a process known as hot-dip galvanizing. This involves submerging steel panels in a bath of molten zinc, creating a robust, corrosion-resistant coating that bonds metallurgically with the steel. The resulting tank is highly durable, capable of storing various types of water, including drinking water, fire-fighting water, and wastewater, without compromising structural integrity. The zinc coating acts as a sacrificial layer, corroding before the steel, thus extending the tank’s lifespan significantly.
The Hot-dip Galvanizing Process
The galvanizing process begins with thorough cleaning of the steel panels to remove impurities, ensuring a strong bond between the steel and zinc. The panels are then submerged in a bath of molten zinc at approximately 450°C, allowing the zinc to form a uniform, protective layer. This layer, typically 70–90 μmwhite space μm thick, provides both barrier and cathodic protection, preventing rust and corrosion even in humid or coastal environments. The process ensures that every surface of the tank is protected, unlike paint or powder coatings, which may chip or peel over time.
Advantages of Hot-dip Galvanized Water Tanks
Durability and Longevity
The zinc coating on Hot-dip Galvanized Water Tanks provides exceptional resistance to rust and corrosion, enabling a lifespan of 35–45 years with minimal maintenance. The strong metallurgical bond between the zinc and steel ensures the coating remains intact, even under mechanical stress or exposure to harsh conditions.
Versatility
These tanks are highly versatile and can be customized to fit specific spatial requirements. Available in panel sizes such as 1.22m x 1.22m, 1m x 1m, 1m x 0.5m, and 0.5m x 0.5m, they can be assembled into capacities ranging from 0.125m³ to 5,000m³. This modularity makes them suitable for applications ranging from small residential tanks to large industrial or agricultural storage systems.
Cost-Effectiveness
Hot-dip Galvanized Water Tanks are a cost-effective investment due to their long lifespan and low maintenance requirements. Their durability reduces the need for frequent replacements, and the modular design allows for easy assembly and disassembly, saving on installation costs.
Environmental Friendliness
The zinc used in galvanizing is a natural, non-toxic element, making these tanks environmentally friendly. The manufacturing process produces no harmful emissions, and the tanks can safely store drinking water without risking contamination, meeting standards such as China’s Drinking Water Standard (GB5749-85).
Applications
Hot-dip Galvanized Water Tanks are used in diverse settings, including:
-
Agricultural Irrigation: Providing reliable water storage for farming needs.
-
Fire-Fighting: Ensuring a readily available water supply for emergency response.
-
Industrial Storage: Storing liquids such as chemicals, oil, or wastewater securely.
-
Domestic Use: Supplying clean, safe drinking water for households and communities.
Why Choose Shandong Wanneng Group for Your Hot-dip Galvanized Water Tank?
Shandong Wanneng Group, a trusted name in water storage solutions, offers high-quality Hot-dip Galvanized Water Tanks manufactured with advanced technology, such as laser cutting and robotic welding, to ensure precision and consistency. Their tanks comply with international standards, including Singapore PSB and SGS, and have been exported to over 79 countries, particularly in Southeast Asia and Africa. With a focus on quality and customer satisfaction, Shandong Wanneng Group provides comprehensive installation manuals and support, making assembly straightforward and efficient.
Technical Specifications and Features
Hot-dip Galvanized Water Tanks are typically constructed from Q235 steel plates, with panel thicknesses ranging from 1.5mm to 5mm, depending on the tank’s size and application. The tanks feature:
-
Bolted Connections: Ensuring easy assembly and a tight seal to prevent leaks.
-
Modular Design: Allowing customization of size and shape to suit specific needs.
-
Optional Reinforcement: I-beams or U-steel supports for tanks up to 5 meters in height.
-
Accessories: Including inlet and outlet flanges, manholes, and external ladders for accessibility.
The tanks can be installed above ground, underground, or on elevated steel towers, offering flexibility for various site conditions. The water pressure from filling the tank helps seal joints, preventing leakage, unlike other tank types where pressure may cause joint failure.
Maintenance and Care
Maintaining a Hot-dip Galvanized Water Tank is straightforward due to its corrosion-resistant properties. Regular inspections for debris or sediment buildup, particularly in drinking water applications, ensure water quality remains high. The tanks’ robust construction means repairs are minimal, but if needed, the modular design allows for easy replacement of individual panels. Manufacturers often provide warranties of 12–18 months, covering defects from the time of shipment or installation.
Global Reach and Reliability
Hot-dip Galvanized Water Tanks have gained popularity worldwide, with installations in over 130 countries, including Sri Lanka, Maldives, Israel, and South Africa. Their reliability in diverse climates, from humid coastal regions to arid environments, makes them a preferred choice for water storage. The tanks’ ability to withstand corrosion, even when partially damaged, is due to the cathodic protection provided by the ziof zinc coating, which corrodes before the steel, preserving the tank’s structural integrity.
Considerations When Choosing a Tank
When selecting a Hot-dip Galvanized Water Tank, consider the following:
-
Capacity Needs: Determine the required volume based on usage, from small-scale domestic needs to large industrial demands.
-
Site Conditions: Assess whether the tank will be above ground, underground, or elevated, and ensure the site can support the tank’s weight and structure.
-
Water Quality Requirements: For drinking water, ensure compliance with local standards and regular maintenance to prevent contamination.
-
Customization Options: Verify that the manufacturer can provide panels and accessories tailored to your specific spatial and functional requirements.
Conclusion
Hot-dip Galvanized Water Tanks are a durable, versatile, and environmentally friendly solution for water storage across a wide range of applications. Their corrosion-resistant zinc coating, modular design, and ease of maintenance make them a cost-effective choice for agricultural, industrial, and domestic use. With a lifespan of up to 45 years and compliance with stringent quality standards, these tanks offer peace of mind for users worldwide. Whether you need a tank for irrigation, fire-fighting, or drinking water, a Hot-dip Galvanized Water Tank provides a reliable and long-lasting solution tailored to your needs.
Sources: Information compiled from industry standards and manufacturer details, including technical specifications from Shandong-based suppliers.
