Vertical Multistage Pump: Complete Guide for High-Pressure Applications
Find out how vertical multistage pumps work, their benefits, and wide industrial applications. A complete guide for industries needing efficient high-pressure pumping.

When industries need reliable, high-pressure, and efficient pumping solutions, the vertical multistage pump is often the first choice. Designed with multiple impellers arranged on a vertical shaft, these pumps deliver excellent performance while saving valuable floor space. They are now widely used in water supply, industrial processes, HVAC systems, and high-rise buildings.
This blog covers everything you need to know about vertical multistage pumps—their design, working, benefits, applications, and future trends.
What is a Vertical Multistage Pump?

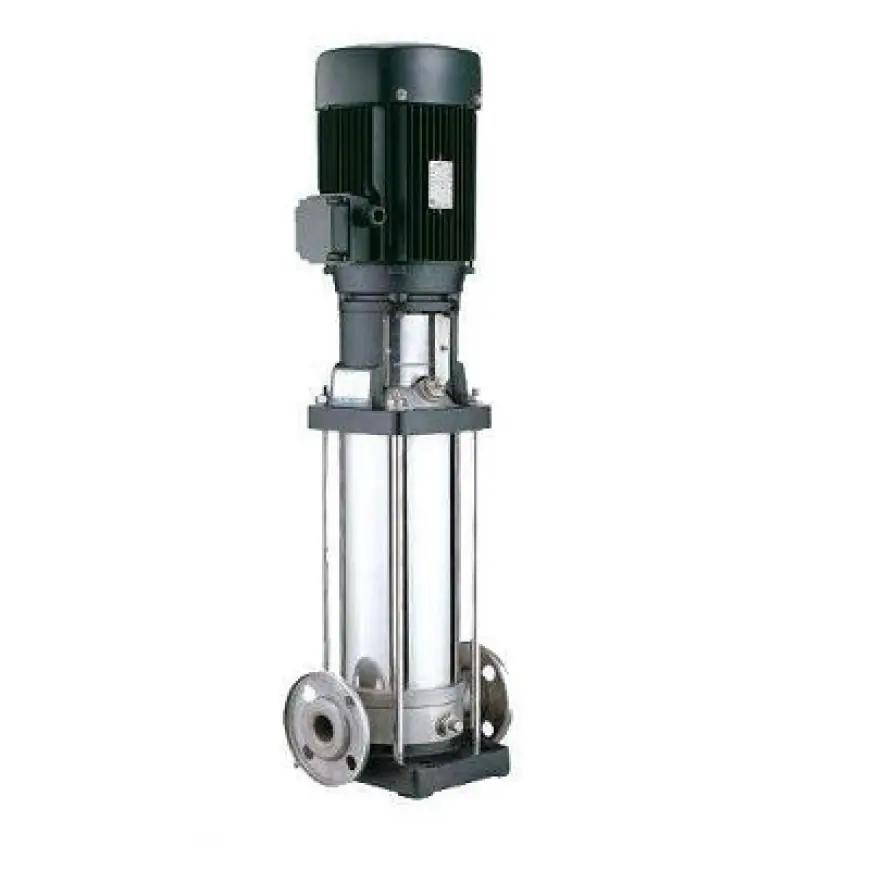

A vertical multistage pump is a centrifugal pump with multiple impellers stacked on a vertical shaft. Each stage increases the liquid pressure before passing it on to the next stage. By the time the fluid leaves the pump, it reaches high pressures suitable for demanding operations.
Unlike horizontal pumps, the vertical design makes it compact, saving space while maintaining excellent efficiency.
Design of Vertical Multistage Pumps
The design is focused on durability and performance. Key parts include:
-
Motor: Mounted on top for space efficiency.
-
Shaft: Connects motor to impellers, running vertically through the pump.
-
Impellers: Multiple impellers arranged in series to increase fluid pressure.
-
Pump Casing: Protects internal components and directs fluid movement.
-
Bearings & Seals: Reduce wear and prevent leakage.
Most pumps are constructed with stainless steel, ensuring corrosion resistance and long service life.
How Does a Vertical Multistage Pump Work?
The working is simple yet powerful:
-
Fluid enters the suction port at the bottom.
-
Rotating impellers push the fluid using centrifugal force.
-
Each impeller stage boosts the pressure.
-
The fluid exits at the discharge port at the required high pressure.
This staged pressure increase makes these pumps ideal for applications where consistent and high-pressure flow is necessary.
Key Features of Vertical Multistage Pumps
-
Compact vertical construction saves installation space.
-
High efficiency with low energy consumption.
-
Durable stainless steel design resists corrosion.
-
Quiet and smooth operation with low vibration.
-
Wide performance range suitable for multiple industries.
-
High-pressure handling capability due to multistage impellers.
Advantages of Vertical Multistage Pumps
Industries prefer these pumps for many reasons:
-
Space Efficiency: Perfect for facilities with limited space.
-
Energy Savings: Designed with energy-efficient motors.
-
High Pressure Capability: Suitable for tall buildings and industrial systems.
-
Versatility: Can pump water, oils, and chemicals.
-
Low Maintenance Needs: Long life with minimal servicing.
-
Reliable Performance: Runs continuously under demanding conditions.
Applications of Vertical Multistage Pumps
These pumps serve across many industries due to their versatility:
-
Municipal Water Supply: Distributes water across cities and towns.
-
Pressure Boosting: Ensures strong water pressure in high-rise buildings and hotels.
-
Boiler Feed: Supplies high-pressure water to boilers in factories.
-
HVAC Systems: Maintains circulation in heating and cooling systems.
-
Irrigation: Provides reliable water flow for agriculture.
-
Desalination Plants: Used in reverse osmosis systems for fresh water production.
-
Food & Pharma Industry: Pumps clean, safe water for processing.
-
Mining & Oil Industries: Handles high-pressure fluids in harsh environments.
Maintenance Tips for Long Service Life
To ensure smooth operation, regular maintenance is important:
-
Inspect seals to prevent leaks.
-
Lubricate bearings for reduced wear.
-
Monitor performance for pressure and flow consistency.
-
Check alignment between motor and shaft.
-
Clean impellers to avoid blockages.
Preventive maintenance reduces breakdowns and extends pump life.
Why Choose Vertical Multistage Pumps?
Compared to single-stage and horizontal pumps, vertical multistage pumps:
-
Deliver higher pressures with the same power.
-
Save installation space in plants and buildings.
-
Reduce operating costs with energy efficiency.
-
Provide longer service life under tough conditions.
Future Trends in Vertical Multistage Pumps
With industries focusing on efficiency and sustainability, these pumps are evolving with:
-
Smart controls for IoT-based monitoring.
-
High-efficiency motors (IE4 & IE5).
-
Eco-friendly materials for longer durability.
-
Automation to adjust operations based on system demand.
These innovations make vertical multistage pumps smarter, greener, and more reliable for future applications.
Conclusion
The vertical multistage pump is an efficient, reliable, and compact solution for industries and commercial systems requiring high-pressure fluid transport. With benefits like space-saving design, energy efficiency, and wide application range, these pumps are a preferred choice for industries worldwide.
